GS-FT23 GS-FT49
+ View Specification + View Specification
GS-FT72
+ View Specification
Reach-In Solid Door Freezers
GS-FT23 / GS-FT49 / GS-FT72

> Stainless Steel Exterior & Interior

> Top Mounted Condensing Unit

> Digital Temperature Control and LED Indicator

> Ergonomically Recessed Door Handle
> 2-1/2" thickness foamed in place with high density
    Polyurethane insulation walls

> Self-closing Door with 30 seconds opening alarm

> Illuminated with LED Interior Light

> Automatic Defrost System
> BLDC Fan Motors for Evaporator and Condenser

> Stainless Steel Condensate Drain Pan with Heater









Model Capacity Dimension*
(W x D x H)(inch) 		Refrigerant Comp. Amp.

Weight (lb)
Net / Crated

GS-FT23 23 cu.ft. 29 x 32 x 77 R-134a 1/3 HP 4.5 A 265 / 287 lbs.
GS-FT49 43 cu.ft. 50 x 33 x 77 R-134a 3/4 HP 8 A 419 / 441 lbs.
GS-FT72 65 cu.ft. 75 x 33 x 77 R-404a 3/4 x2 HP 13.5 A 584 / 606 lbs.
*Power(V-Hz-Ph): 115-60-1   *Height includes casters. *Specifications subject to change without notice.

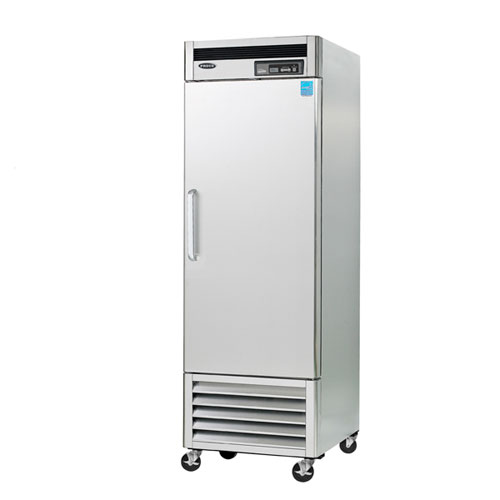

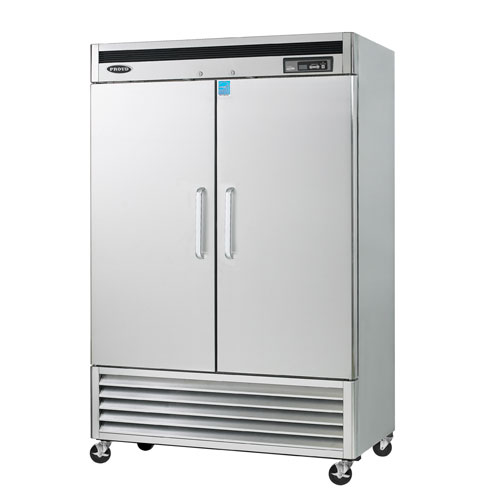

PS-F23 PS-F49
+ View Larger + View Larger
PS-F72

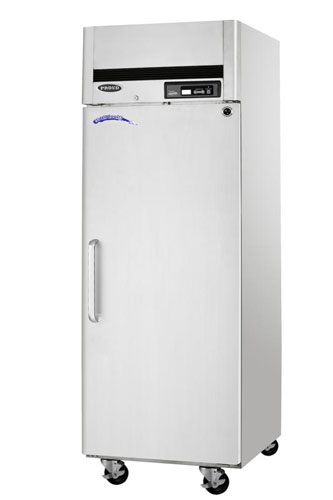

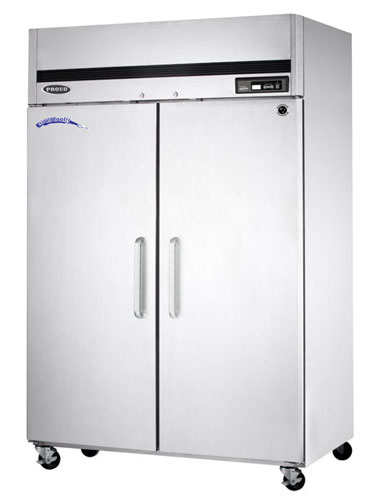

PS-FT23 PS-FT49
+ View Larger + View Larger
PS-FT72
Solid Door Freezers
PS-F23 / PS-F49 / PS-F72 [Bottom Mounted]
PS-FT23 / PS-FT49 / PS-FT72 [Top Mounted]

> Microprocessor

  •     Digitally Controlled Temperature -9˚ F to 5˚F
  •     Digital Temperature Display
  •     Digital Temperatur Setting
  •     Digitally Controlled Defrost
  •     Self Dignostic System

> Refrigeration System

  •     Self- Contained System
  •     CFC Free Refrigerant
  •     Compressor Made by DANFOSS, SAMSUNG
  •     Polyurethane Foamed with High-Density Insulation
  •     High Efficient Fin on Tube Condenser and Evaporator
  •     Energy Saving Forced-Air Cooling System

> Exterior & Door

  •     Durable Stainless Steel (Galvanized Steel Back)
  •     Elegant Rounded Corner Door Design
  •     Self-Closing Door and Stay-Open Feature
  •     Top Grille with Keyed Door Locks
  •     4” Swivel Castors with Front Locks

> Interior

  •     Durable Stainless Steel
  •     Magnetic Door Gasket
  •     Heavy Duty & Adjustable PE Coated Wire Shelves
  •     Incandescent Lamp
  •     Tray Racks Accepted
ENERGY STAR MODEL
PS-F23/ PS-F49 / PS-F72 / PS-FT23 / PS-FT49 / PS-FT72

Model Capacity Dimension*(W x D x H) Refrigerant Comp. Amp. Cord Length No. of Shelves Weight
PS-F23 23 cu.ft. 26 3/4 x 31 x 82 3/4 R134a 1/3 HP 6.0A 8 2/5 ft. 3 284 lbs.
PS-F49 49 cu.ft. 54 x 31 x 82 3/4 R404a 3/4 HP 10.9A 8 2/5 ft. 6 402 lbs.
PS-F72 72 cu. ft. 82 x 31 x 83 R404a 1 1/4 HP 13.0A     570 lbs.
PS-FT23 23 cu.ft. 26 3/4 x 31 x 83 3/4 R134a 1/3 HP 6.0A 8 2/5 ft. 3 280 lbs.
PS-FT49 49 cu.ft. 54 x 31 x 83 3/4 R404a 3/4 HP 11.0A 8 2/5 ft. 6 400 lbs.
PS-FT72 72 cu. ft. 82 x 31 x 83 R404a 1 1/4 HP 13.0A     570 lbs.
AC 115V / 60Hz *Height includes the Castors
