GM-48
+ View Specification
GM-60
+ View Specification
GM-72
+ View Specification
Mega Top Units
GM-48 / GM-60 / GM-72

> Stainless Steel Exterior & Interior

>Side Mounted Condensing Unit

> Digital Temperature Control and LED Indicator

> Ergonomically Recessed Door Handle
> Foamed in place with high density  Polyurethane
    insulation walls

> Self-closing Door

> Automatic Defrost System
> BLDC Fan Motors for Evaporator and Condenser

> Stainless Steel Condensate Drain Pan with Heater
> 1/2" Thick Cutting Board Included









Model Capacity Dimension*
(W x D x H)(inch) 		Refrigerant Comp. Amp. No. of Pans

Weight (lb)
Net / Crated

GM-48 10 cu.ft. 47 x 34 x 41 R-134a 1/3 HP 4.5 A 18 148 / 170 lbs.
GM-60 14 cu.ft. 59 x 34 x 41 R-134a 1/3 HP 4.5 A 24 163 / 185 lbs.
GM-72 17 cu.ft. 71 x 34 x 41 R-404a 1/3 HP 4.5 A 30 192 / 214 lbs.
*Power(V-Hz-Ph): 115-60-1   *Height includes casters. *Specifications subject to change without notice.

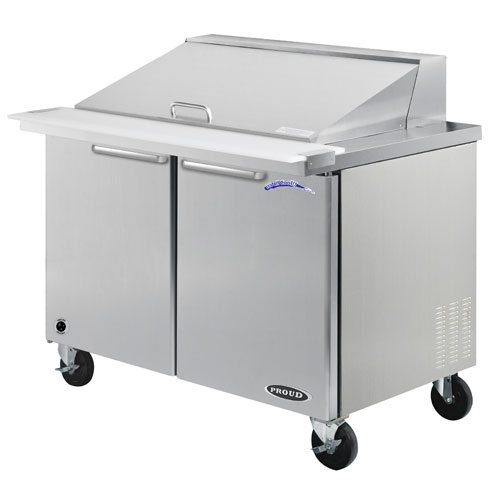

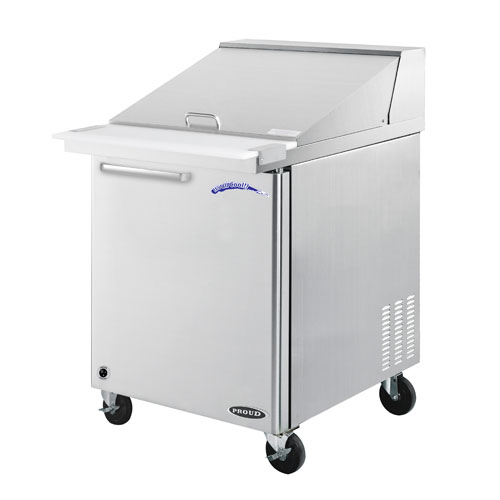

PM-28 PM-48
+ View Larger + View Larger

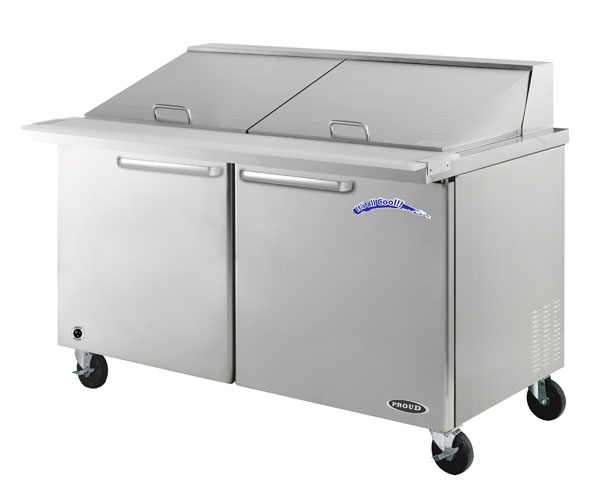

PM-60
+ View Larger

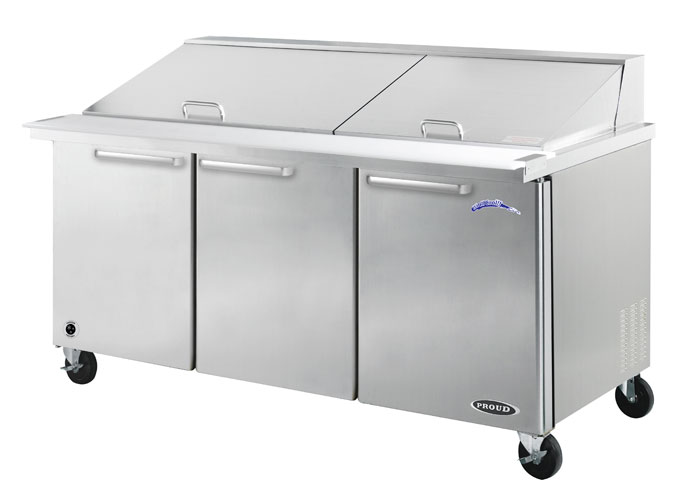

PM-72
+ View Larger
Mega Top Units
PM-28 / PM-48 / PM-60 / PM-72

> Refrigeration System

  •     Temperature control 30˚F to 44˚F
  •     Self-Contained System
  •     CFC Free Refrigerant
  •     Bottom Mount Compressor
  •     Compressor Made by TECUMSEH, SAMSUNG
  •     Polyurethane Foamed with High-Density Insulation
  •     High Efficient Fin on Tube Condenser and Evaporator
  •     Energy Saving Forced-Air Cooling System

> Exterior & Door

  •     Durable Stainless Steel (Galvanized Steel Back)
  •     Stainless Steel Top Cover with Insulated Foam
  •     Elegant Rounded Corner Door Design
  •     Self-Closing Door
  •     5” Swivel Castors with Front Locks

> Interior

  •     Durable Stainless Steel
  •     Magnetic Door Gasket
  •     Heavy Duty & Adjustable PE Coated Wire Shelves
  •     Thermometer Installed

> Pan & Cutting Board

  •     Standard 1/6 size, 4” deep PC Pan Included
  •     PE Cutting Board Included


Model Capacity Dimension*(W x D x H) Refrigerant Comp. Amp. Cord Length No. of pans Weight
PM-28 8 cu.ft. 27 1/2 x 33 x 44 2/5 R134a 1/5 HP 3.2A 8 3/5 ft. 12 [9(1/6) 3(1/9)] 205 lbs.
PM-48 15 cu.ft. 48 1/4 x 33 x 44 2/5 R134a 3/8 HP 7.9A 8 3/5 ft. 18 291 lbs.
PM-60 19 cu.ft. 60 1/3 x 33 x 44 2/5 R134a 3/8 HP 7.9A 8 3/5 ft. 24 329 lbs.
PM-72 23 cu.ft. 72 2/5 x 33 x 44 2/5 R134a 3/8 HP 9.9A 8 3/5 ft. 30 362 lbs.
AC 115V / 60Hz *Height includes the Castors
